PDO Barbed Sutures | Knotless Absorbable Sutures

Download

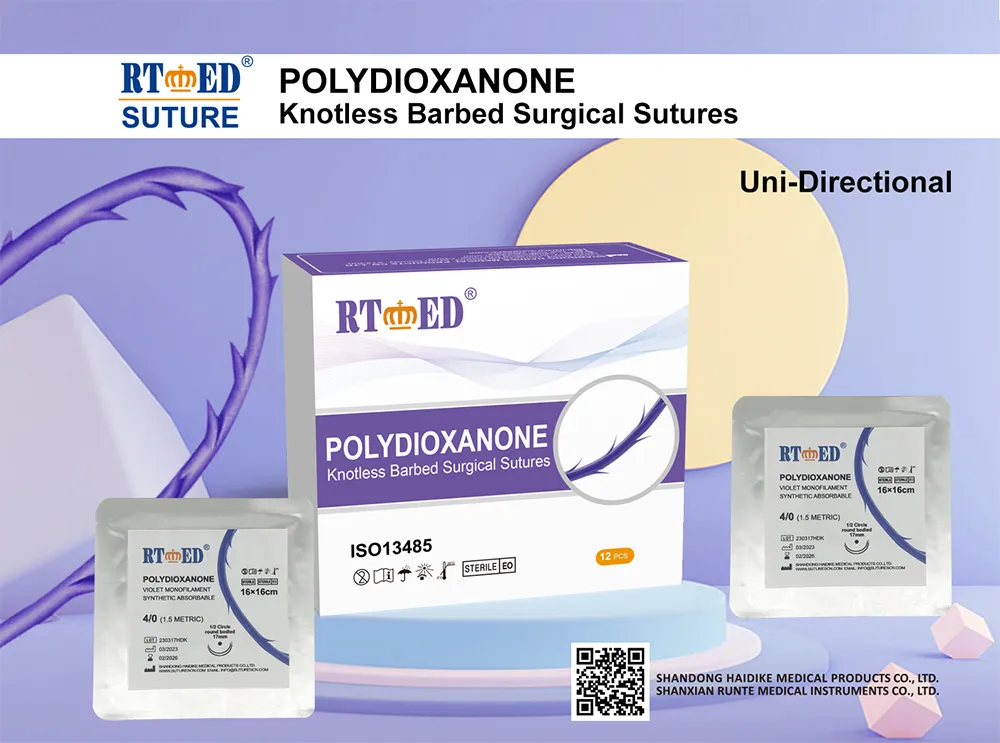

Uni-directional barbed sutures are available with a terminal loop and attached with an atraumatic surgical needle.

Bi-directional barbed sutures are available without loop and two atraumatic surgical needles attached on either end.

Advantages

Knotless barbed sutures close wounds faster than interrupted technique for reducing operation time

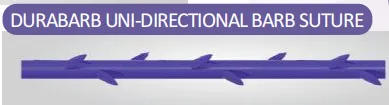

Barbed sutures offer superior tissue-holding strength compared to interrupted technique with coated PGA sutures, and continuous technique with PDO sutures. Unique thread design with circumferential unidirectional barbs and triangular stopper provides a secure hold and consistency, making it easier to manage tension on every pass, that results in better wound healing.
Potential to reduce knot-related complications
Ultra sharp needle point for atraumatic tissue penetration
Needle coated with silicone for smooth tissue passage
Predictable absorption profile

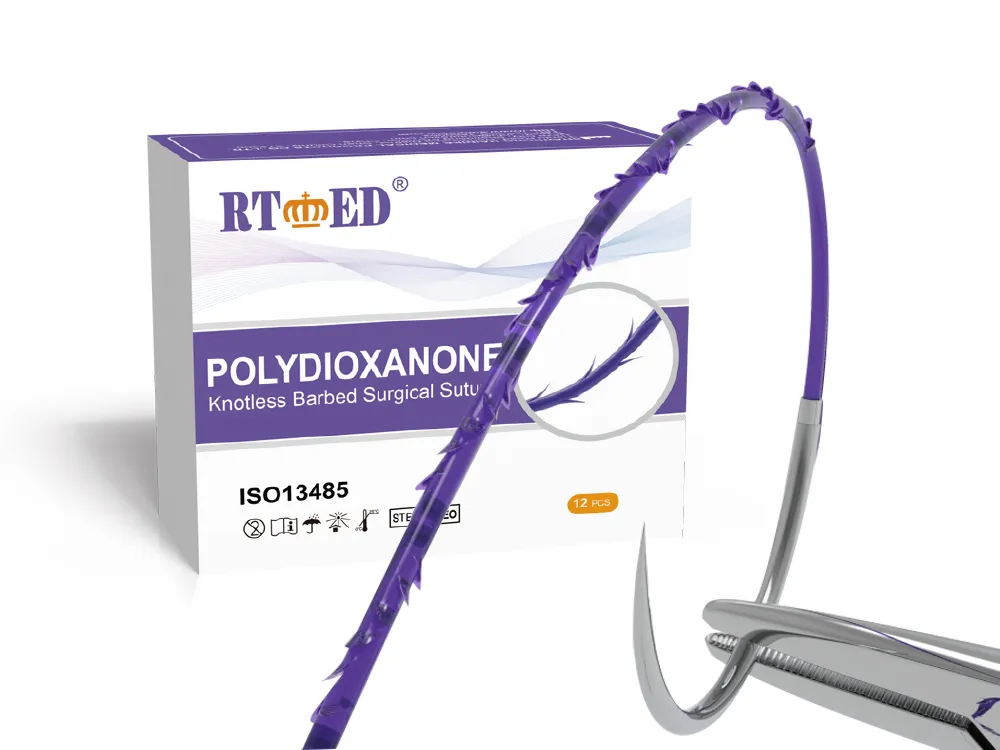

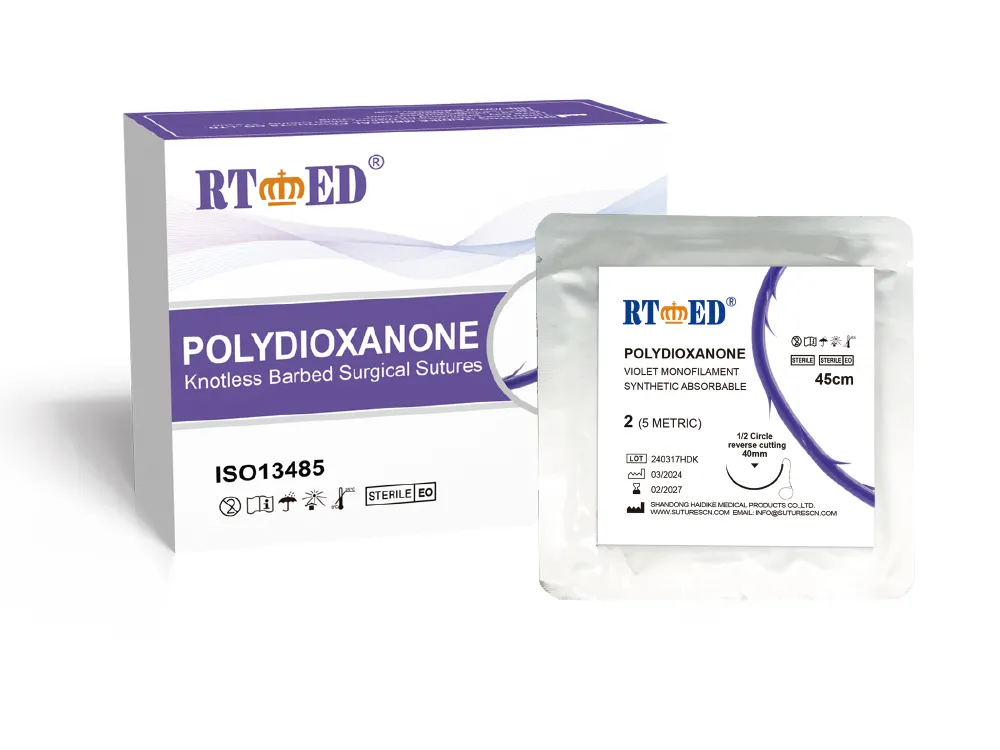

Uni-Directional Absorbable Knotless Barbed PDO Suture
Needle Type	Length/cm	Suture Size USP
		2	1	0	2/00	3/00	4/00
1/2 Circle -36mm Taper Point	15	BPDO002A0136
1/2 Circle -36mm Taper Point	20		BPDO01D0136	BPDO00D0136
1/2 Circle -36mm Taper Point	30	BPDO02B0136	BPDO01B0136	BPDO00B0136	BPD020B0136
1/2 Circle -36mm Taper Point	45	BPDO02C0136	BPDO01C0136	BPDO00C0136	BPDO20C0136
1/2 Circle -40mm Reverse cutting	45	BPDO02C0540
1/2 Circle -36mm Reverse cutting	45		BPDO01C0536	BPDO00C0536
1/2 Circle -26mm Taper Point	30			BPDO00B0126
1/2 Circle -36mm Reverse cutting	30			BPDO00B0536
1/2 Circle -26mm Taper Point	15				BPDO20A0126
1/2 Circle -26mm Taper Point	20				BPDO20O0126
1/2 Circle -26mm Taper Point	20					BPDO30O0126
1/2 Circle -26mm Taper Point	45					BPDO30C0126
3/8 Circle -19mm Reverse cutting	20					BPDO30O0619	BPDO40A0619
3/8 Circle -19mm Reverse cutting	30					BPDO30B0619	BPDO40B0619
3/8 Circle -19mm Reverse cutting	15						BPDO40A0619

Bi-Directional Absorbable Knotless Barbed PDO Suture
Needle Type	Length/cm	Suture Size USP
Needle Type	Length/cm	2	1	0	2/0	3/0	4/0
1/2 Circle -36mm Taper Point	24×24	BPDO02R0136	BPDO01R0136	BPDO00R0136
1/2 Circle -36mm Taper Point	30×30	BPDO02S0136	BPDO01S0136
1/2 Circle -36mm Taper Point	36×36	BPDO02 T0136
1/2 Circle -48mm Taper Point	45×45	BPDO02U0148
1/2 Circle -40mm Reverse cutting	36×36	BPDO02 T0540
1/2 Circle -26mm Reverse cutting	24×24	BPDO02R0526
1/2 Circle -22mm Taper Point	14×14		BPDO01V0122	BPDO00V0126
1/2 Circle -26mm Reverse cutting	14×14		BPD001V0526
1/2 Circle -26mm Reverse cutting	24×24		BPDO01V0526			BPDO30R0526
1/2 Circle -36mm Taper Point	14×14			BPDO00V0136
12 Circle -36mm Reverse cutting	36×36			BPDO00T0536
1/2 Circle -36mm Reverse cutting	45×45			BPDO00U0536
1/2. Circle -22mm Taper Point	14×14				BPDO20V0122
1/2 Circle-36mm Taper Point	10×10				BPDO20W0136
1/2 Circle -36mm Taper Point	40×40				BPDO20U0136
3/8 Circle -19mm Reverse cutting	14×14					BPDO30V0619
3/8 Circle -26mm Reverse cutting	24×24					BPDO30R0626
1/2 Circle -17mm Taper Point	7×7						BPDO40Y0117
3/8 Circle -19mm Reverse cutting	7×7						BPDO30V0619

Absorbable knotfree barb suture 360 degree spiral barb design

Single needle type

Double needle type

Suture from the middle of the incision, so the tension can be controlled from the center.

360-degree barb
Start suturing from the middle of the incision to the both ends;
Fix both ends of the incision with back seams or side seams when finishing the suturing
Suitable for the suturing of the soft tissues
